House Heat Pump

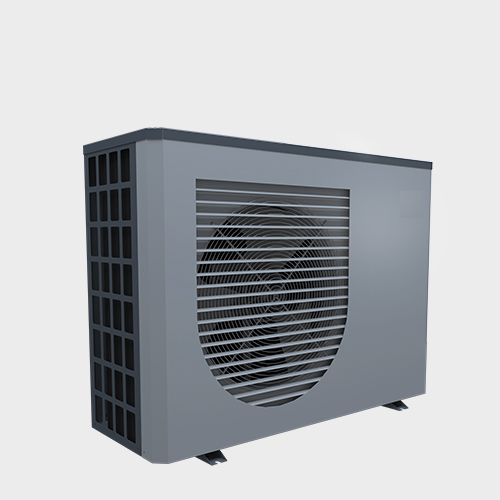

R32 Monobloc DC Inverter Heat Pump

Product ID：House Heat Pump
QQ：
Phone: +86 18998294328
Tel: 020-32161729
Email: abby@secuwell.com
Time: 2023-02-06 14:06

Refrigerant

Due to accelerated global warming and the destruction of the ozone layer, various international conventions and meetings are held to enhance restrictions to the use of refrigerant or enforce the use of eco-conscious refrigerant R32 is internationally acclaimed for being eco-friendly. This low volume refrigerant is as efficient as any conventional refrigerant but boasts a 68% reduced global warming potential. Therefore we develops R32 monobloc DC Inverter heat pump, contributing to the reduction of carbon emission and help achieve the global goal of carbon neutrality.

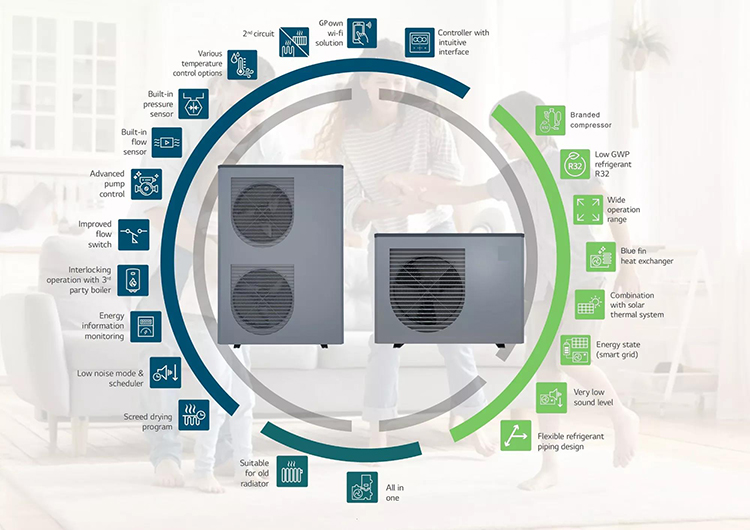

Unique Features

User Convenience | R32 monobloc DC Inverter heat pump is equipped with various user convenience functions, which allow for enhanced comfort and control. The textbased user-friendly interface on the remote control allows for optimized user intuition and the unit's wide connectivity also provide user control convenience.
Excellent Performance & Efficiency | R32 monobloc DC Inverter heat pump provides world-class energy efficiency by adopting revolutionary technology. The products have achieved a high heating performance even in extremely cold weather conditions and can bring customers peace of mind through product reliability.
Easy Installation & Maintenance | R32 monobloc DC Inverter heat pump offers installation and design flexibility to professional installers.The Heating Configurator also allows professionals to save time during commissioning. During maintenance, the clip type connection allows fast and easy disassembly of the components.

Model：			Master 60	Master 90	Master 120	Master 180	Master 120	Master 180	Master 240
Heating Capacity Range		KW	1.5-7	2-10	3-13	4-20	3-13	4-20	5-24
Heating (A7/6℃,W30/35℃)	Heating Capacity	KW	6.3	9.2	12.2	18.2	12.2	18.2	24.1
	Power Input	KW	1.35	2.02	2.71	4.02	2.68	3.99	5.31
	Current	A	5.87	8.78	11.78	17.48	4.52	6.74	8.96
	COP	W/W	4.67	4.55	4.5	4.53	4.55	4.56	4.54
Heating (A7/6℃,W47/55℃)	Heating Capacity	KW	6.1	8.7	11.5	17.73	11.5	17.73	23.31
	Power Input	KW	2.08	3.13	4.05	5.9	4.05	5.9	7.32
	COP	W/W	2.93	2.78	2.84	3.01	2.84	3.01	3.18
Cooling (A35/24℃,W23/18℃)	Cooling Capacity	KW	6.3	9.1	11	17.62	11	16.62	22.1
	Power Input	KW	1.63	2.38	2.88	4.36	2.86	4.33	5.78
	EER	W/W	3.87	3.82	3.82	4.04	3.85	3.84	3.82
Cooling (A35/24℃,W12/7℃)	Cooling Capacity	KW	6.2	8.5	10.7	16.95	10.7	16.25	20.5
	Power Input	KW	2.1	2.85	3.63	5.78	3.58	5.51	6.91
	EER	W/W	2.95	2.98	2.95	2.93	2.99	2.95	2.97
Rated water flow		m3/h	1.1	1.6	2.1	3.1	2.1	2.1	4.1
Rated voltage /Frequency		V/Hz	220~240/50				380~415/50
Maximum input power		KW	2.8	3.5	4.7	6.6	4.7	6.5	10
Maximum input current		A	12	15	20	28	8	11	17
Brand/Type of Compressor		Mitsubishi/Rotary
Refrigerant		R32
Air flow		m3/h	3500	4000	4500	8000	4500	8000	9000
Brand of Water pump		WILO
Waterproof grade			IPX4
Noise pressure ( at 1m/5m)		dB(A)	51/37	53/39	54/40	56/42	54/40	56/42	58/44
Max water outlet temperature		°C	60

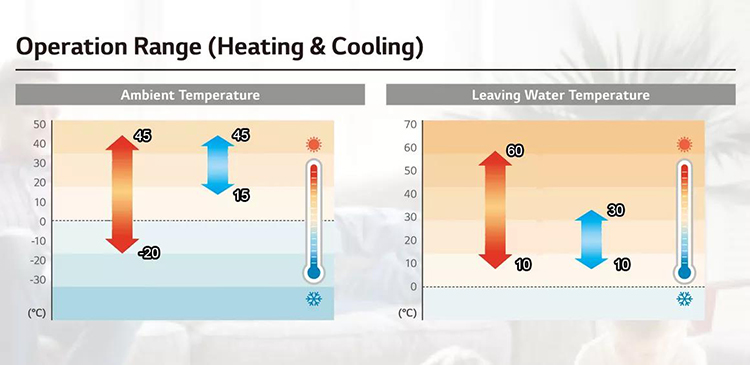

Min/Max outdoor air (heating mode )		°C	-20/45
Min/Max outdoor air (cooling mode )		°C	15/45
Net Dimensions ( L/W/H )		MM	965/445/692	1106/445/823	1106/445/823	1106/445/1593	1106/445/823	1106/445/1591	1106/445/1591
Net Weight		KG	70	85	100	160	85	100	180
