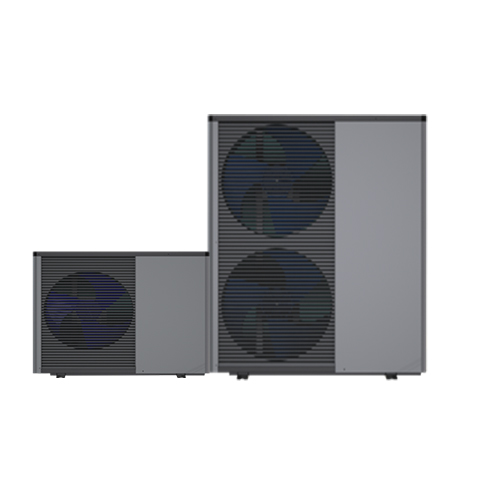

| Model： | 6kW-R290 | 9kW-R290 | 12kW-R290 | 16kW-R290 | 9kW-R290 | 12kW-R290 | 16kW-R290 | ||
| Heating Capacity Range | kW | 2.0-6.9 | 3.0-9.8 | 4.0-12.8 | 5.0-16.5 | 3.0-9.8 | 4.0-12.8 | 5.0-16.5 | |
| Heating (A7/6℃,W30/35℃) | Heating Capacity | kW | 6.38 | 9.25 | 12.30 | 16.10 | 9.25 | 12.30 | 16.10 |
| Power Input | kW | 1.33 | 2.03 | 2.72 | 3.41 | 2.03 | 2.72 | 3.41 | |
| Current | A | 5.78 | 8.83 | 11.83 | 14.83 | 3.08 | 4.13 | 5.18 | |
| COP | W/W | 4.80 | 4.56 | 4.52 | 4.72 | 4.56 | 4.52 | 4.72 | |
| Heating (A7/6℃,W47/55℃) | Heating Capacity | kW | 5.5 | 8.12 | 10.65 | 13.60 | 8.12 | 10.65 | 13.60 |
| Power Input | kW | 1.70 | 2.66 | 3.51 | 4.41 | 2.66 | 3.51 | 4.41 | |
| COP | W/W | 3.23 | 3.05 | 3.03 | 3.08 | 3.05 | 3.03 | 3.08 | |
| Cooling (A35/24℃,W23/18℃) | Cooling Capacity | kW | 6.25 | 8.85 | 10.80 | 14.85 | 8.85 | 10.80 | 14.85 |
| Power Input | kW | 1.42 | 2.28 | 2.88 | 3.97 | 2.28 | 2.88 | 3.97 | |
| Current | A | 6.17 | 9.91 | 12.52 | 21.39 | 3.46 | 4.38 | 6.03 | |
| EER | W/W | 4.40 | 3.88 | 3.75 | 3.74 | 3.88 | 3.75 | 3.74 | |
| Cooling (A35/24℃,W12/7℃) | Cooling Capacity | kW | 5.2 | 6.80 | 9.40 | 13.20 | 6.80 | 9.40 | 13.20 |
| Power Input | kW | 1.38 | 2.28 | 3.16 | 4.22 | 2.28 | 3.16 | 4.22 | |
| EER | W/W | 3.76 | 2.98 | 2.97 | 3.13 | 2.98 | 2.97 | 3.13 | |
| Rated water flow | m3/h | 1.10 | 1.59 | 2.12 | 2.77 | 1.59 | 2.12 | 2.77 | |
| Rated voltage /Frequency | V/Hz | 230/50 | 230/50 | 230/50 | 230/50 | 380/50 | 230/50 | 380/50 | |
| Maximum input power | kW | 2.76 | 3.15 | 3.75 | 6.21 | 3.15 | 3.75 | 6.21 | |
| Maximum input current | A | 12.0 | 13.7 | 17.0 | 27.0 | 4.8 | 5.7 | 9.4 | |
| High pressure value cut-off pressure | MPa | 3.2 | |||||||
| Low pressure valve cut-off pressure | MPa |
0.03 0.1 |
|||||||
| Power supply | 220-240V~ /50Hz | 380-415V /3N~ /50Hz | |||||||
| Compressor | GMCC | GMCC | GMCC | GMCC | GMCC | GMCC | GMCC | ||
| Refrigerant | / | R290 | R290 | R290 | R290 | R290 | R290 | R290 | |
| Brand of Water pump | WILO | WILO | WILO | WILO | WILO | WILO | WILO | ||
| Defrost | / | Auto defrost with 4 way valve | |||||||
| Waterproof grade | / | IPX4 | IPX4 | IPX4 | IPX4 | IPX4 | IPX4 | IPX4 | |
| Noise pressure ( at 1M, nameplate 5m) | dB(A) | 51 (35) | 54 (39.5) | 54(44) | 56(41) | 54 (39.5) | 54(44) | 56(41) | |
| Max water outlet temperature | °C | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Diameter of water connection | / | DN 25 (1") | DN 25 (1") | DN 25 (1") | DN 32 (1.5") | DN 25 (1") | DN 25 (1") | DN 32 (1.5") | |
| Drainage valve | mm | 15 | 15 | 15 | 15 | 15 | 15 | 15 | |
| Internal pressure drop at rating water flow | kPa | 22 | 40 | 50 | 60 | 40 | 50 | 60 | |
|
Min/Max heating water pressure (Safety valve 3Bar) |
bar | 0.5/3.0 | 0.5/3.0 | 0.5/3.0 | 0.5/3.0 | 0.5/3.0 | 0.5/3.0 | 0.5/3.0 | |
| Fuse (PCB) | A | 10 | 10 | 10 | 10 | 10 | 10 | 10 | |
| Lowest Operational point, outdoor air/flow line (heating mode ) | °C | -25°C | -25°C | -25°C | -25°C | -25°C | -25°C | -25°C | |
| Highest Operational point, outdoor air/flow line (heating mode ) | °C | 45°C | 45°C | 45°C | 45°C | 45°C | 45°C | 45°C | |
| Lowest Operational point, outdoor air/flow line (cooling mode ) | °C | 10°C | 10°C | 10°C | 10°C | 10°C | 10°C | 10°C | |
| Highest Operational point, outdoor air/flow line (cooling mode ) | °C | 45°C | 45°C | 45°C | 45°C | 45°C | 45°C | 45°C | |
| Net Dimensions ( L/W/H ) | mm | 1115/415/898 | 1115/415/898 | 1115/415/898 | 1115/415/1332 | 1115/415/898 | 1115/415/898 | 1115/415/1332 | |
| Package Dimensions ( L/W/H ) | mm | 1155/500/1035 | 1155/500/1035 | 1155/500/1120 | 1155/500/1460 | 1155/500/1035 | 1155/500/1120 | 1155/500/1460 | |
| Net Weight | kg | 80 | 82 | 125 | 175 | 82 | 125 | 175 | |
| Gross Weight | kg | 100 | 102 | 145 | 195 | 102 | 145 | 195 | |
| Loading quantity 20GP/40GP,40HQ | pcs | 44/96/96 | 44/96/96 | 44/96/96 | 22/48/48 | 44/96/96 | 44/96/96 | 22/48/48 | |
