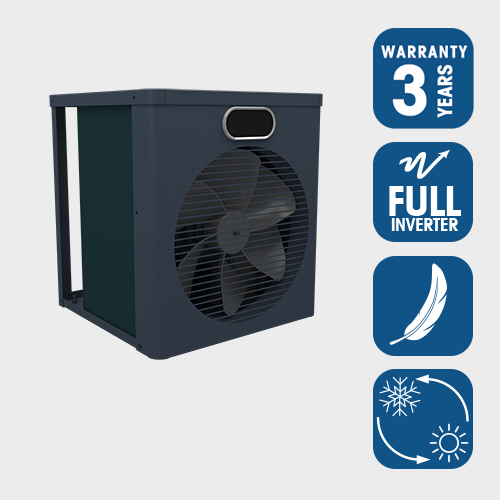

Magic inverter Turbo 30/Magic inverter Turbo 50 heat pump for swimming pools up to 30m3
Even more efficient than before, Magic inverter Turbo 30/Magic inverter Turbo 50 outclasses its competitors with its reversible mode and its capacity to both heat up and cool down a swimming pool. This heat pump operates down to -10 ° C.
With its 32/38mm and 1 ’’ fittings, it can be connected in seconds to all conventional filtration systems, whether in an above-ground, in-ground pool or even a spa.
Simply plug it into an electrical outlet and let the water in your pool heat up.
Designed as a Premium heat pump, Magic inverter Turbo 30/Magic inverter Turbo 50 inherits all the Poolex performance in an ultra compact size and its weight allows it to be easily moved around.
|
Model： |
Magic inverter Turbo 30 |
Magic inverter Turbo 50 |
|
|
Advised pool volume |
m³ |
15~20 |
25~30 |
|
Operating range |
°C |
-10~43 |
-10~43 |
|
Air 26/24°C Water 28°C |
Capacity (KW) |
3.02~1.30 | 5.08~1.78 |
|
COP |
6.04~11.82 | 6.05~11.87 | |
|
Air 15/12°C Water 28°C |
Capacity (KW) | 2.25~1.15 | 4.06~1.49 |
|
3COP |
4.41~6.76 | 4.46~6.77 | |
|
Air 35/24°C Water 27°C |
Capacity (KW) | 2.06~0.85 | 2.98~1.35 |
| EER | 3.43~4.25 | 3.47~4.22 | |
|
Power supply |
220-240V~ /50Hz |
220-240V~ /50Hz |
|
|
max power input |
KW |
0.90 | 0.90 |
|
max current |
A |
3.99 | 3.99 |
|
water flow |
m³/h |
1.30 | 2.20 |
|
Refrigerant |
R32 | R32 | |
|
Min pressure/Max pressure |
1.5/4.3MPa |
1.5/4.3MPa |
|
|
unit net dimensions(mm) |
L*W*D |
340x340x385 | 340x340x385 |
|
package dimensions(mm) |
L*W*D |
380x370x415 |
380x370x415 |
|
gross weight |
Kg |
22 |
28 |
|
noise at 1 m |
<52 dB(A) |
<55 dB(A) |
|
|
noise at 10m |
<32dB(A) |
<35dB(A) |
|
|
compressor brand |
GMCC |
GMCC |
|
|
compressor type |
Rotary |
Rotary |
|
|
loading quantity |
Pcs | 1152 | 960 |
