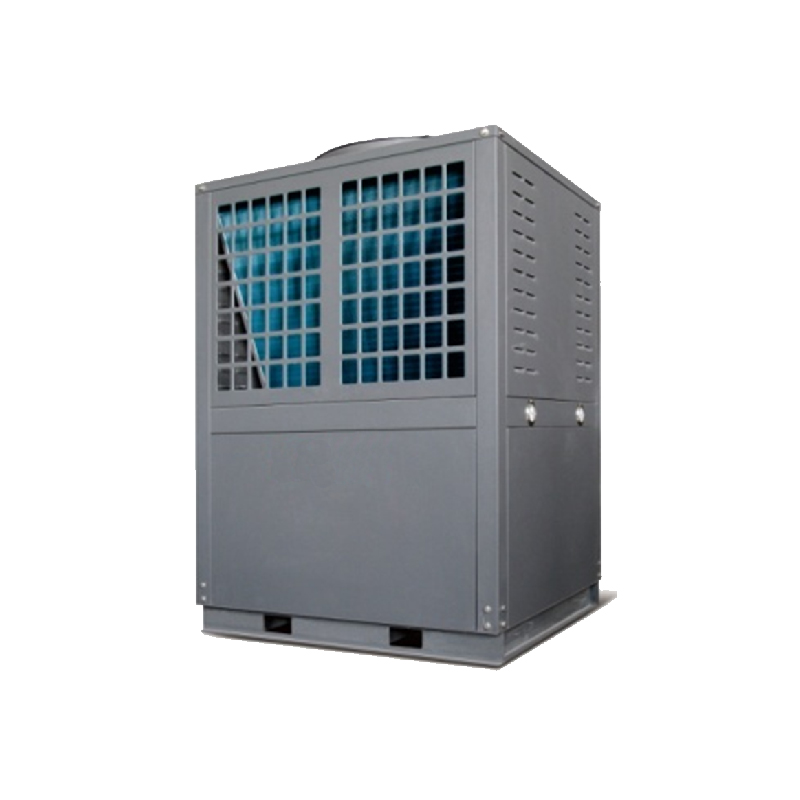

| Model No. | SWW-70TA1 | SWW-103TA1 | SWW-136TA1 |
| Power Supply | 380V/3/50Hz | 380V/3/50Hz | 380V/3/50Hz |
| Heating Capacity at Air 26℃, Water 26℃, Hygro 80% | |||
| Heating Capacity（kW) | 70～16.5 | 103～24.8 | 136～32.4 |
| Power Input（kW) | 10.03～1.02 | 14.80～1.54 | 19.46～2.01 |
| COP | 16.11～6.98 | 16.09～6.96 | 16.15～6.99 |
| Heating Capacity at Air 15℃, Water 26℃, Hygro 70% | |||
| Heating Capacity（kW) | 51～12.1 | 76～18.3 | 101～23.9 |
| Power Input（kW) | 10.24～1.6 | 15.29～2.42 | 20.24～3.15 |
| COP | 7.56～4.98 | 7.55～4.97 | 7.59～4.99 |
| Heating Capacity at Air 7℃/6℃, Water 26℃ | |||
| Heating Capacity（kW) | 47～11.2 | 68～15.9 | 92～21.8 |
| Power Input（kW) | 11.78～1.89 | 17.09～2.70 | 22.94～3.66 |
| COP | 5.92～3.99 | 5.89～3.98 | 5.95～4.01 |
| Cooling Capacity at Air 35℃, Water 27℃ | |||
| Cooling Capacity（kW) | 38～9.1 | 58～14.1 | 76～18.5 |
| Power Input（kW) | 10.41～1.36 | 15.89～2.11 | 20.65～2.74 |
| EER | 6.69～3.65 | 6.68～3.65 | 6.74～3.68 |
| Rated Power Input（kW) | 10 | 15 | 20 |
| Rated Current(A) | 18 | 27 | 36 |
| Max Power Input（kW) | 15 | 22 | 30 |
| Max Current(A) | 26 | 38 | 54 |
| Refrigerant | R32 | R32 | R32 |
| Min and max pressure in Mpa | 0.2/4.4 | 0.2/4.4 | 0.2/4.4 |
| Compressor Type | Mitsubishi inverter | Mitsubishi inverter | Mitsubishi inverter |
| Heat Exchanger | Titanium | Titanium | Titanium |
| Expansion Valve | Electronic EEV | Electronic EEV | Electronic EEV |
| Air Flow Direction | Vertical | Vertical | Vertical |
| Water Flow Volume（m3/h) | 20 | 30 | 40 |
| Net Dimensions(L*W*H)（mm） | 1416×752×1055 | 1250×1080×1870 | 2150×1080×2180 |
| Package Dimensions(L*W*H)（mm） | 1580X880X1150 | 1300X1100X1950 | 2230X1120X2200 |
| Working temperature range（℃） | -15～43 | -15～43 | -15～43 |
| Heating temperature range（℃） | 15～40 | 15～40 | 15～40 |
| Cooling temperature range（℃） | 8~28 | 8~28 | 8~28 |
| Noise（dB) | ≤68 | ≤71 | ≤73 |
| Net Weight（kg） | 280 | 420 | 750 |
| Water connection(mm) | 63 | 63 | 75 |
| 20GP/ 40HQ container loading quantity | 12月26日 | 8 /18 | 5 / 10 |
